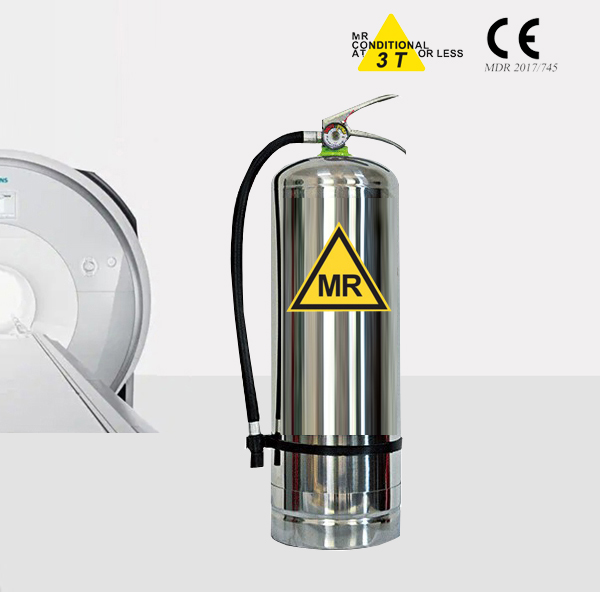

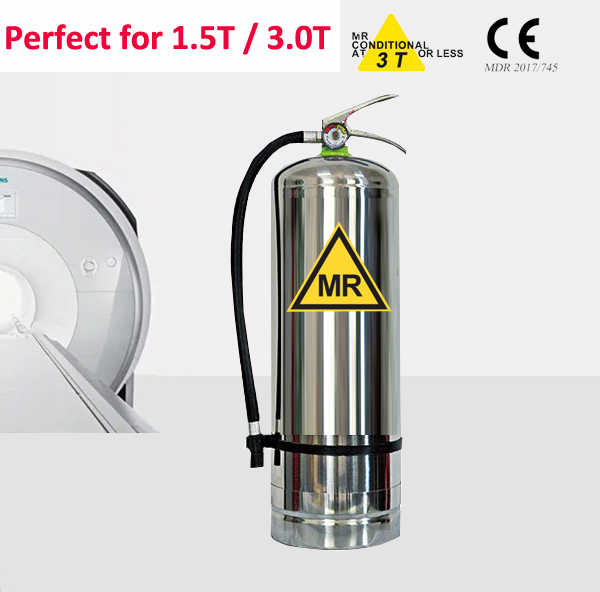

Non-magnetic Fire Extinguisher used in MR room/ MR conditional up t0 3.0T MR equipment/ for brand TOSHIBA, GE, PHILIPS, SIEMENS

Non-magnetic Fire Extinguisher used in MR room/ MR conditional up t0 5.0T MR equipment/ for brand TOSHIBA, GE, PHILIPS, SIEMENS

Model: HO-M08

This MRI stretcher is fully tested with 5.0T MRI scanner at its highest standard.

Features
1, Economically priced
2,  Simple operation and maintenance
3,  Rechargeable
4,  MR Conditional (tested to 5 tesla)
5,  No clean-up/no residue
6,  Safe for exposure to occupants
7,  Zero ozone depletion
8, Safe for sensitive electronic equipment
9,   Six-year limited warranty from date of delivery to original end-user purchaser
10,  Temperature range is –40 °C to 55 °C

Application
This clean agent MRI fire extinguisher is designed for hazard areas that require a reliable MR Conditional
fire extinguisher. The agent is proven to be electrically non-conductive (will not damage sensitive electrical equipment
like computers), leaves no residue, requires no clean-up, and has no ozone depletion potential.
It is a completely MR Conditional stainless steel shell and MR Conditional valve, hose
and nozzle.

Agent
HFC-236fa agent is a colorless, odorless, electrically non-conductive “clean” agent which discharges as a liquid and flashes to a gas, providing an effective firefighting range. HFC-236fa will not cause thermal shock or damage to delicate electronic equipment. HFC-236fa has been accepted by the EPA for commercial, industrial, and military use under the EPS’s SNAP program.

Features:
1, Specially designed for MRI environments with non-magnetic materials.

2, Non affected by magnetic filed

3, 6KGS nitrogen capacity

4, Working temperature: -20°C to +55°C

5, Agent: HFC-236fa                   Gas: Nitrogen

6, Gas pressure: 1.2Mpa (20°C)
7, Water pressure: 2.1Mpa

8, Relative permeability: U r: 1.0063

9, Test condition: H=16000A/m

10, Application: A ( normal solid fire), C ( gas and steam fire), E ( electrical fire)

Usage:

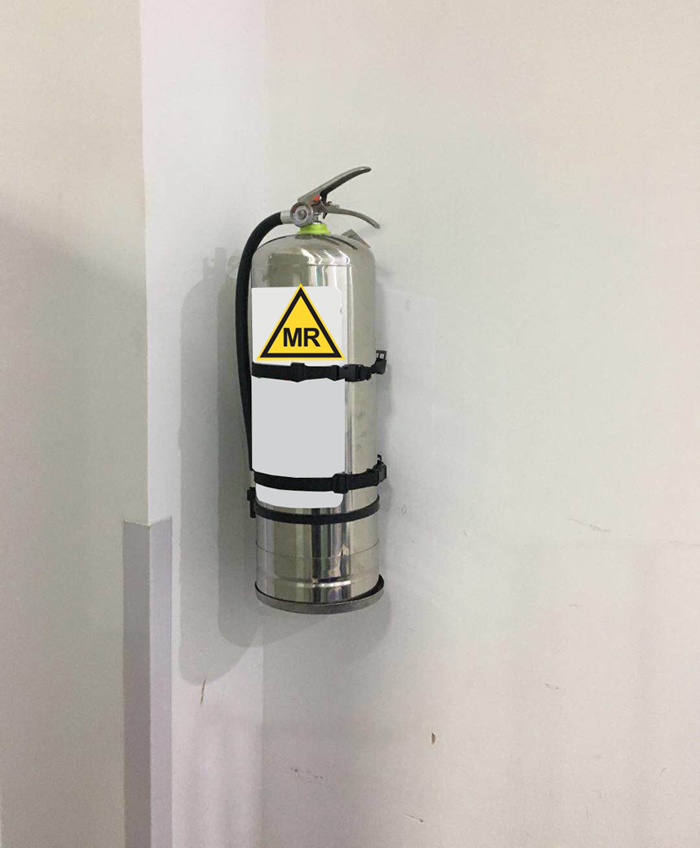

Type 1: fix it on the wall

Type 2: fix it on the ground
