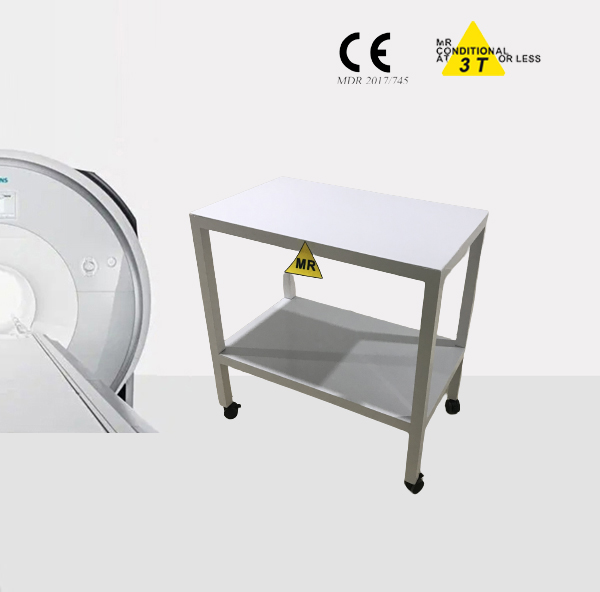

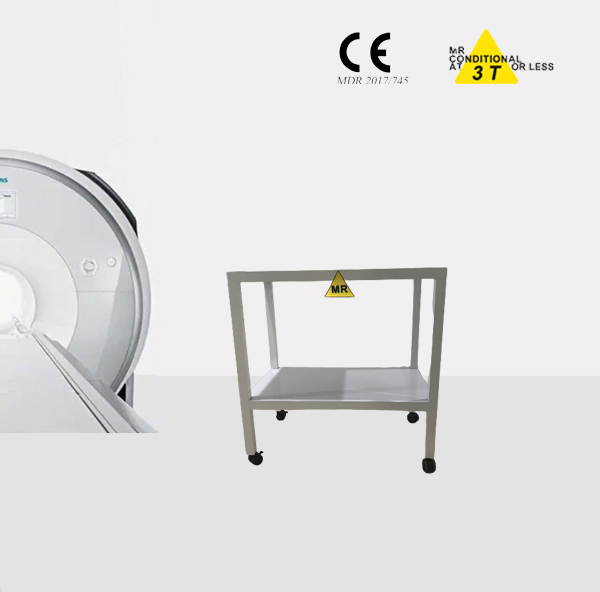

MRI compatible instrument trolley with 2 shelves for 1.5T and 3.0T MR system

MRI compatible instrument trolley with 2 shelves for 1.5T and 3.0T MR system

This is intended for use in the field of magnetic resonance imaging (MRI, or MR). It used to place MRI coils or any other tools or medical items that needed to be shown and near MR scanner.

The MRI-compatible instrument table is suitable for the following MRI systems (according to their compatibility data sheets) :

Philips: Achieva and Intera 1.5 T, Achieva XR at 1.5 T
Siemens: Magnetom Serie up to 3 T
GE: Discovery MR450 1.5 T (1.5T LCC HDv), Signa 1.5 T HDx Series (1.5 T LCC HDx-BRM, Hde), Signa 1.5 T Twin Speed(1.5 T LCC HDx-TRM), 1.5 T LCC HD, Cx1.5 T w. CRM enclosure, SV 1.5 T, SIV 1.5 T, SIII 1.5 T

The MRI instrument table can be used safely under the following conditions:

Static magnetic field of maxiumum 3 Tesla or less
Additionally a spatial gradient of maximum 8,6 T/m or less
The instrument table may not exceed the limit of 8,6 T/m in sliding in the direction of the magnet.
